Client State Tracking with Netscape Cookies

What's all the fuss about?

• Cookies are becoming a buzzword, despite some conceptual drawbacks
• They actually CAN be useful
• Some high-profile services are being built around them

Highlights of our little chat

• Why do I care? Good question, have another beer.
• Move over, toasters: Flying Cookies in HTTP
• That's the way the cookie crumbles: Structure of Cookies
• Sample recipes: Some Real-World Applications

Stateless Protocol seeks State

• State Info [Kristol95]
  http://www.research.att.com/~dmk/session01.txt
• Netscape Cookies [Netscape95]
  http://home.netscape.com/newsref/std/cookie_spec.html

Advantages of cookies vs. embedded URL tokens

• invisible, transparent
• less subject to tampering
• don't interfere w/bookmarking

What are cookies good for?

• Presenting useful "virtual session" information after an arbitrary delay
• Building up state interactively
• Exchanging non-user-friendly info between server & client
• Minimal "security through obscurity"

Presenting "virtual session" info

• Users love to be recognized, hate logging in
• Users love customization, hate retyping
• Session tracking supports customization
  • are you a frequent user?
  • what's new since you last visited?
  • were you in the middle of something when you left?

Building up state interactively

• Establishing one-time preferences via a dialogue, for later compression into a single state
  • custom page layout services, such as MSN
• Cumulative choice applications
  • online mall "shopping cart" model

Exchanging non-user-friendly info

• Big hairy numbers
  • customer id
  • license info
  • compressed state tokens
• Machine-gathered data
  • how many times you logged in
  • how long ago
  • what you did last time you were here

Minimal "security through obscurity"

• Messing with cookies requires slightly more ingenuity than messing with embedded tokens
• User has to go to the effort of watching cookies rather than seeing tokens fly by in the URL
• Passing encoded or tokenized "ascii-armored" blocks can be done in cookies, thus wrapping your state data in a protected envelope

What browsers support cookies?

• Enhanced Mosaic 2.10.35 Win16 FTP Software Spyglass 35
• GNNworks v1.2.0
• Mozilla (ie Netscape, all CURRENT versions)
• NetCruiser V3.0
• NetManage Chameleon WebSurfer 5.0 (mixed, 2 OK, 1 No)
• OmniWeb 2.0.3 OWF 1.0
• Pueblo 1.1, Microsoft Windows NT 4.0, Intel Pentium, Winsock 12.0, 20.0, a (mixed, 2 OK, 2 bad values)
• STBWeb 0.20 (mixed, 1 OK, 1 No)
• Spyglass Mosaic 2.11 Win32 Spyglass 5

History of term "cookie"

• The Netscape preliminary spec says it was chosen "for no compelling reason
• No need to quote the Jargon File/New Hacker's Dictionary
• MIT ITS machines (and others!) "cookie monster" programs
• MIT-MAGIC-COOKIE in X-Windows probably first large-scale usage

Other systems using cookies

• X-Windows
• In a sense, anything using a lock file to denote a resource in use (file's existence is the cookie)
  • NFS
  • lpd
  • uucp

Netscape cookie spec

• "preliminary" spec only
• circa early 1995
• still an evolving system

What's a cookie?

• Text in a file OR
• an HTTP response header field
  • server,
  • location,
  • www-authenticate,
  • cookie

Cookie Contents

• subject to standard HTTP Response Header constraints
• subject to cookie constraints

HTTP Response Header constraints

• charset = "US-ASCII" | "ISO-8859-1" | "ISO-8859-2" | "ISO-8859-3" | "ISO-8859-4" | "ISO-8859-5" | "ISO-8859-6" | "ISO-8859-7" | "ISO-8859-8" | "ISO-8859-9" | "ISO-2022-JP" | "ISO-2022-JP-2" | "ISO-2022-KR" | "UNICODE-1-1" | "UNICODE-1-1-UTF-7" | "UNICODE-1-1-UTF-8" | token

Specific cookie constraints

• 4K size limit
• 300 simultaneous instantiations
• 20 simultaneous instantiations per FQDN

Where do they live?

• short answer is "a magic file"
• better answer is "kinda sorta in memory and also in a magic file"
• file location, accessibility, is implementation specific

How do I get cookies?

• point your browser to www.girlscouts.org
• yes, this is a real URL
• no, they don't sell the cookies online
• why? because the revenue goes 100% to the local group and it would compete with their own groups
• we now return you to your regularly scheduled presentation

How do I get Netscape cookies?

• from a Netscape server, in your HTTP return transaction, from a "Set-Cookie: " response header returned to you

Here's where the fun begins...

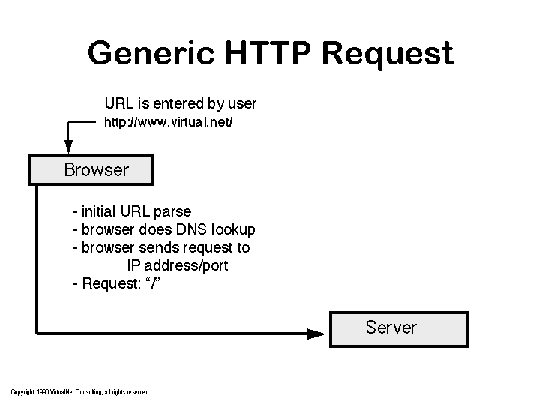

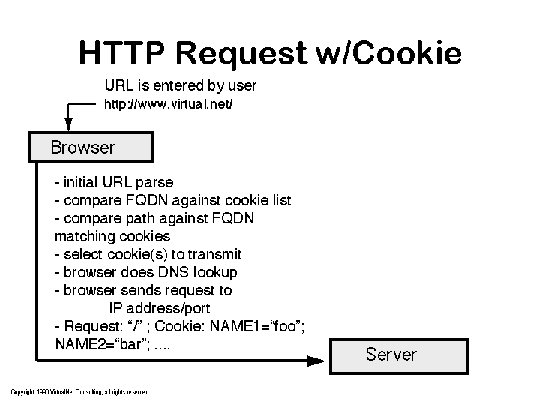

HTTP Request: Client

• Ask for http://www.foobar.com/my/url.html
• Browser parses URL
• Browser compares URL FQDN against all known cookies
• Browser compares URL path against path attribute of matching FQDN or DN cookies
• Browser does DNS lookup of FQDN
• Browser sends HTTP Request to IP address obtained, including an HTTP Response Header of the form "Cookie: a=VALUE ; name3=VALUE ...."

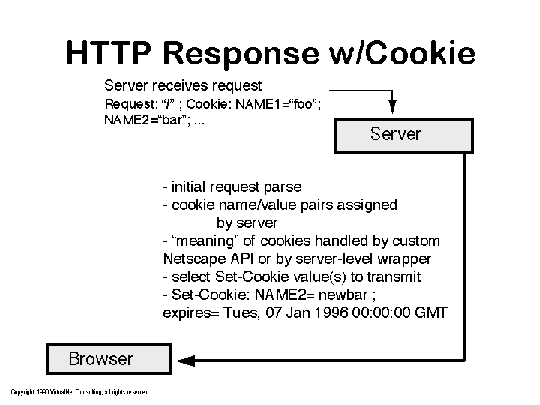

HTTP Response: Server

• Server gets Browser request
• Server URL presumably can make use of cookie, since Browser got it from Server in first place at some point in the dim past
• overall wrapper set in magnus.conf file may do something with cookie)
• URL may be a CGI that will do something with cookie
• Server replies with content to Browser; content probably includes a Set-Cookie header
• Browser handles Cookie

HTTP Response: Client

• Browser snags incoming data, parses
• Browser takes first Set-Cookie header, looks for domain field matches
• Browser does reverse lookup on IP address where data originated, gets FQDN
• Browser modifies stored cookies matching FQDN with applicable updates from the Set-Cookie header
• Do until bored, or out of cookies
• Display data to patient user

What is likely to blow up? (security concerns)

• DNS & Spoofing Attacks
• Resource Allocation
• User Idiocy

DNS & Spoofing

• cookies rely VERY heavily on DNS info being correct
• reverse lookups used to ÒauthorizeÓ cookie destructive refresh/rewrite
• forward lookups used to determine which cookies proffered to server in request
• see CERT advisories on BIND vulnerability, IP spoofing; relatively easy to do and becoming more widespread

Resource Allocation

• silent failures due to too many cookies per FQDN, or too-big cookies;
• spec handwaves on correct behaviors for allocation and GCing of cookies
• behavior of truncated cookies not addressed in spec
• 4096 limit is really NAME/VALUE; truncation is in spec for other parts
• if path trunc'd will they match all or none?
• ditto FQDN truncation
• what is REAL limit of cookie, not name/val limit?

User Idiocy

• applications ignoring resource allocations detailed above, esp. number of cookies per FQDN
• cookies are sent in cleartext unless marked secure; just because the user canÕt *see* his credit card number going out in ASCII...
• users assuming that because they *can* edit their cookies file, they will accomplish something useful by doing so

Fine Structure of Cookies

• Set-Cookie: name=VALUE; [expires=GMT_DATE_STRING;] [path=PATH;] [domain=FQDN;] [secure]
• spec indicates that browsers fill in optional fields from requesting URL

NAME

• restricted chars: colon, semicolon, whitespace
• also HTTPD resp header restrictions
• that ol' 4096 again

EXPIRES

• optional
• defaults to "this session"
• implementation specific-- window or program close ends session? prelim spec documents Netscape 1.1 bug, only / path cookies properly saved between sessions

DOMAIN

• optional
• default is FQDN of rev lookup of URL response
• tail matching FQDN for wildcarding
• only Set-Cookie from foo.com can affect foo.com cookies

PATH

• optional
• default is path of URL response
• TEST: how does attribute affect, if at all?
• path only eval'd once FQDN checked

SECURE

• if on, cookie only transmitted to secure servers
• what is "secure", https urls or port 443?
• How are they checking?

What services out there are using cookies?

• Microsoft Network custom pages
• New Netscape Personal Workspace
• SiteTrack
• Your Name Here :-)

Cookies in the Real World: SiteTrack

• server add-on to Netscape API
• master wrapper library
• intercepts cookies and does database stuff on them
• transparent to users and to webmaster
• doctors server output to put session tracking cookies in

A Few Cookie Pointers

• AndyÕs Netscape HTTP Cookie Notes
• http://www.illuminatus.com/cookie
• http://www.illuminatus.com/cookie_pages/TasteTest.html (Cookie test & set CGI)
• Results of Form Test: Cookie Support
• http://www.research.digital.com/nsl/formtest/stats-by-test/NetscapeCookie.html
• Strata's Cookie Page
• http://www.virtual.net/Projects/Cookies/ (a collection of other links, coming soon)

All the links in this presentation are here!
